PRODUCTS AND APPLICATIONS

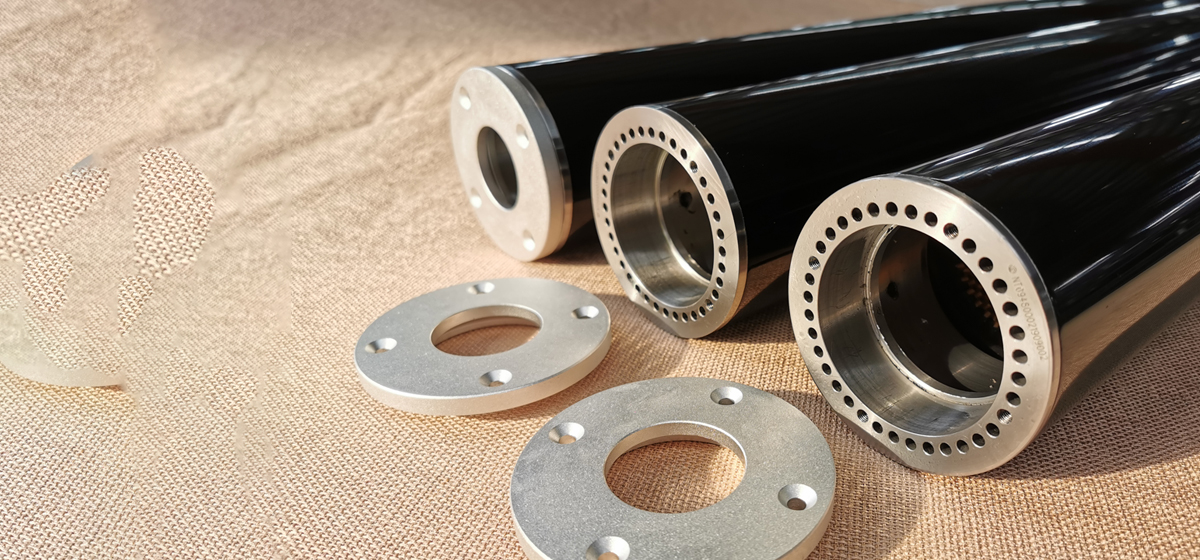

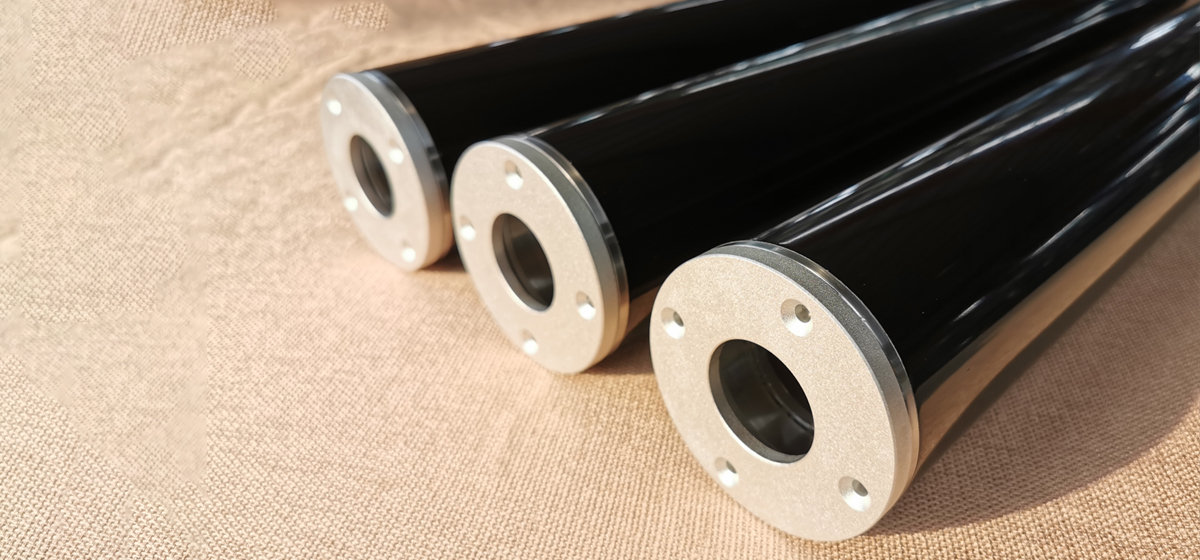

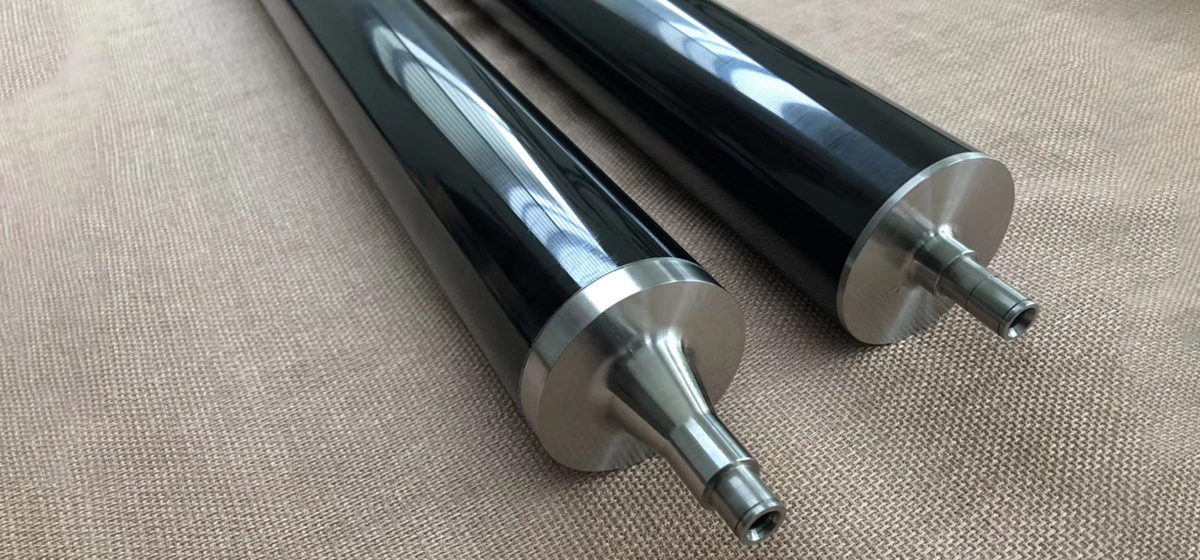

ULTRA-HIGH SPEED VACUUM ALUMINIZATION EQUIPPED WITH CARBON FIBER GUIDE ROLLER

PARAMETER

Product name: Super high speed vacuum aluminum plating equipment carbon fiber guide roller

Brand Name:

Roller material: high performance carbon fiber composite material

Composite axle head link: durable and reliable (patented technology)

Weight: 3kg, composite density 1600kg/m³

Surface coating: composite coating or fiber composite coating

Maximum diameter: designable manufacturing < 80mm

Surface roughness: Rz0.2um-1.5um

Maximum length: Design and manufacture < 3500mm

Surface hardness: Shore D85, or the surface hardness of fibrous materials is Barthier 55

High stiffness: 180N/ m, deflection deformation 0.01mm/m, or stiffness can be designed, the machine runs smoothly

Composite coating thickness: 0.3mm

Speed: linear speed 1200m/min, or design > 7000r/min

Surface exhaust design: smooth surface

APPLICATION AREA

Vacuum aluminum plating equipment production line
