PRODUCTS AND APPLICATIONS

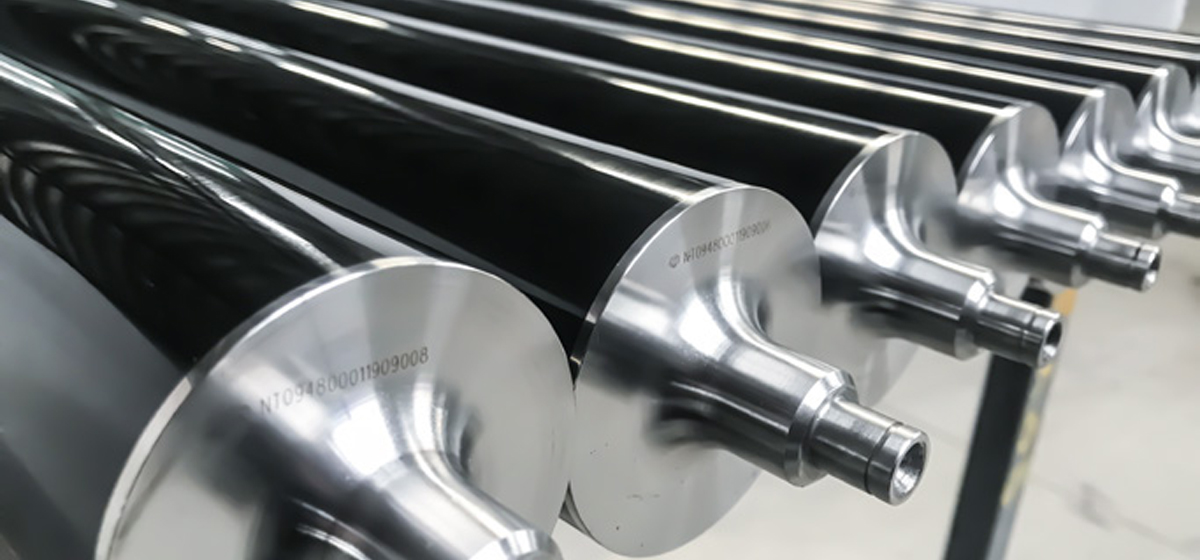

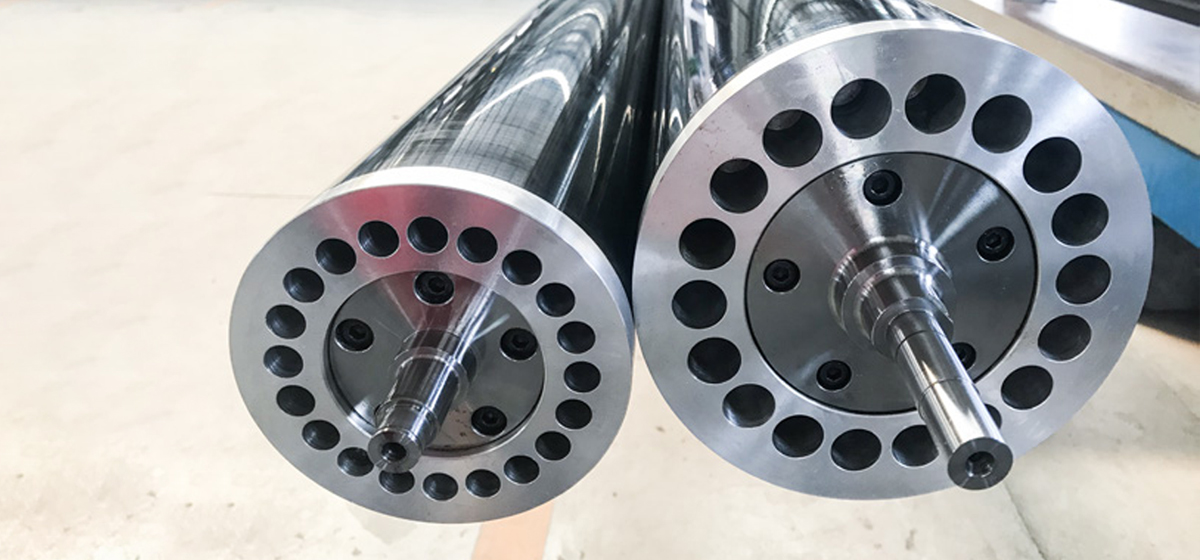

ULTRA LONG AND HIGH-SPEED CARBON FIBER GUIDE ROLLER

PARAMETER

Product name: Super long, high speed film carbon fiber guide roller

Brand Name:

Roller material: high performance carbon fiber composite material

Composite axle head link: durable and reliable (patented technology)

Weight: 23kg, composite density 1600kg/m³

Surface coating: Composite coating

Maximum diameter: Design and manufacture < 5000mm

Surface roughness: Ra0.4um

Maximum length: Design and manufacture < 10000mm

Surface hardness: Shaw D85

High stiffness: 5N/m, deflection deformation 0.02mm/m, or stiffness can be designed, the machine runs smoothly

Composite coating thickness: 0.5mm

Speed: line speed 2000m/min, or design > 3500r/min

Surface exhaust design: smooth surface

APPLICATION AREA

PE, PP, PET, BOPP, BOPET, others, film splaying equipment (winding press roller)
